Microfocus X-ray Inspection Systems and SEM equipment sales & support.
Low Cost Refurbished X-ray Inspection & Electron Microscopy Equipment. SMT PCB, BGA, QFP and Semiconductor Failure Analysis.

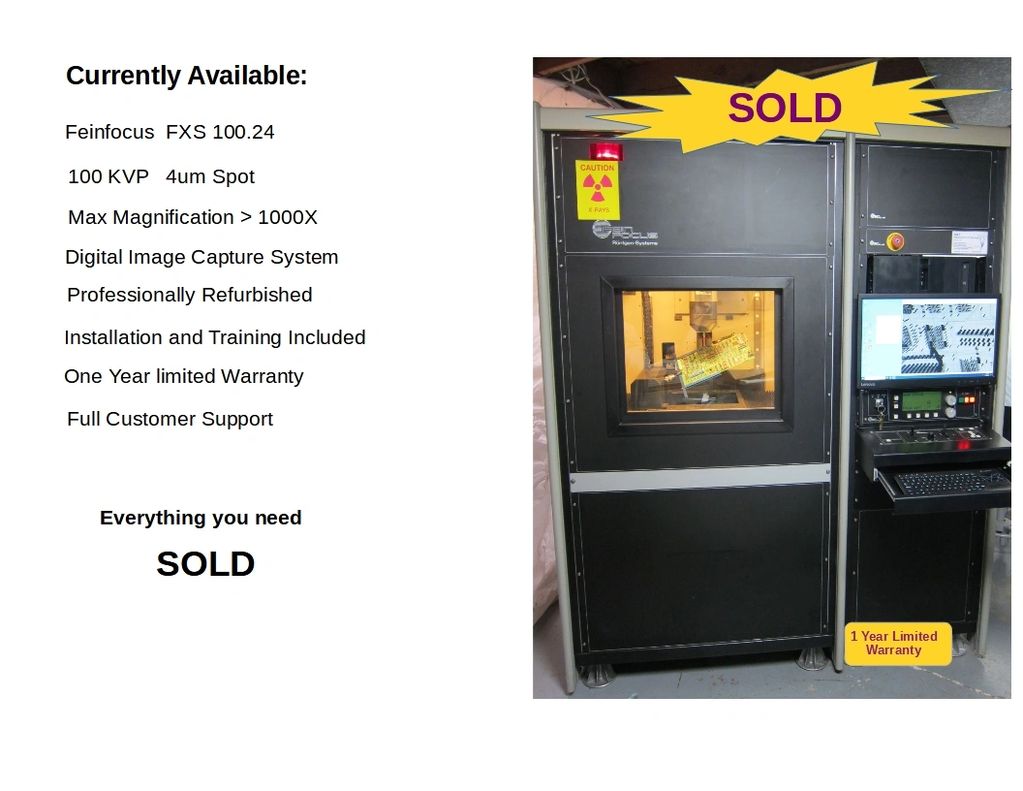

This X-ray System is Available Now
The FXS 100.24 is great for general Microfocus X-ray inspection applications including:
- SMT PCB and BGA manufacturing
- Military cable harnesses / connectors
- Aerospace encapsulated devices
- Aerospace Sensors & Seals
- Microelectronic Hybrid devices
- Micromechanical motion analysis
- Semiconductor Packaging FA
- Medical Devices
- Forensic Investigation
- Insurance Loss Investigation
- Expert Witnessing / Litigation
Multilayer SMT card with 0.5mm BGA. Solder balls are 300 micron diameter.
Six layer SMT card with 0.5mm pitch BGA devices. 25um Au bond wires.
8 X 12 inch PCB in tilt / Rotate chuck.
The Feinfocus FXS 100.24 is suitable for microchip package Failure Analysis.
Lead frame showing bond wire heels inside an epoxy encapsulated QFP device.
Refurbished Microfocus X-ray Systems
Systems with Open type X-ray Sources
- Medium to High Performance
- Infinite Life Span X-ray Source
- Field Maintainable Performance
- Feinfocus
- X-Tek, CR Technology
Microfocus Systems with Sealed Tube X-ray Sources
- Medium to High Performance
- Reduced Cost of Ownership
- Requires very little maintenance
- Nicolet, Glenbrook, Faxitron
Customized Mini or Microfocus X-ray Systems
- Configured to your requirements without features you don't need
- Optimized Savings for a limited range of use.
- Low Resolution Cone Beam CT available at very reasonable cost
Scanning Electron Microscopy, High Vacuum Analytical Systems

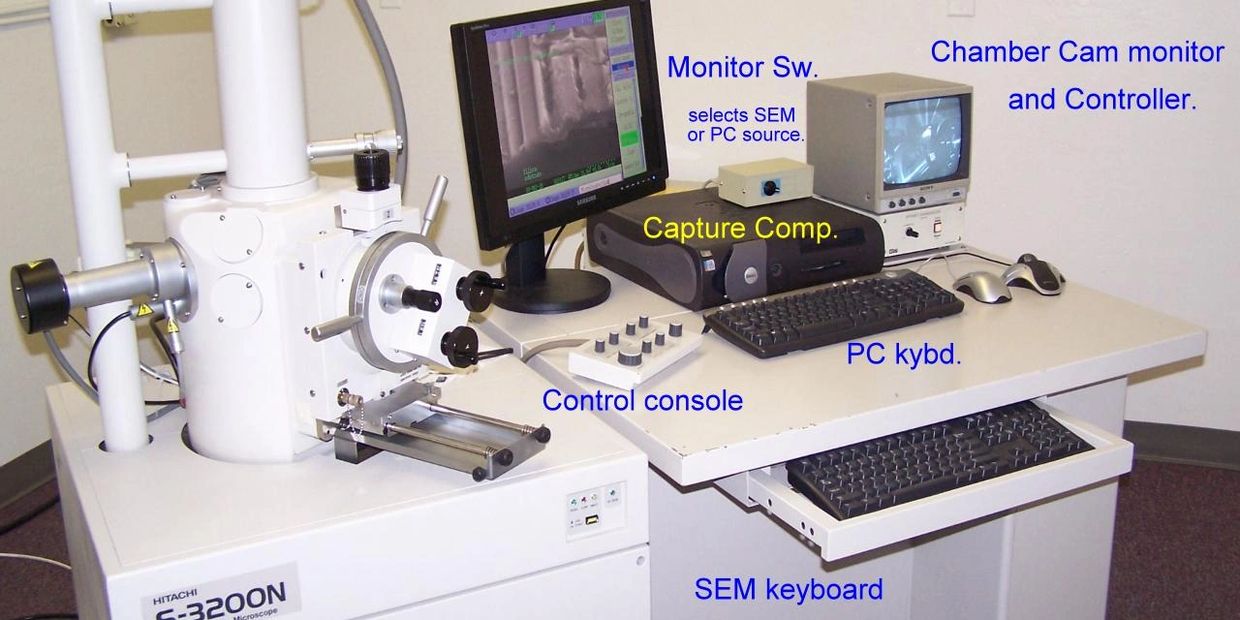

Refurbished Tungsten Filament SEM
- JEOL or Hitachi Service
- Refurbished JEOL or Hitachi Systems
- XRF Microanalysis Service.
- General Repairs or Design for High Vacuum & High Voltage Apparatus.
Field Service for SEM or Microfocus X-ray Equipment
- Available to perform Field Repair Service in Nearly any location.
- North American English or Portuguese speaking FSE.
- Registered with the Arizona radiation regulatory Agency.
Custom High Vacuum & High Voltage Testing or Analytical Equipment Design & Repair
- Helium Leak Detection Systems
- RGA (residual gas analyzers)
- XRF (x-ray fluorescence)
- Ion Implantation Processing Equip.
